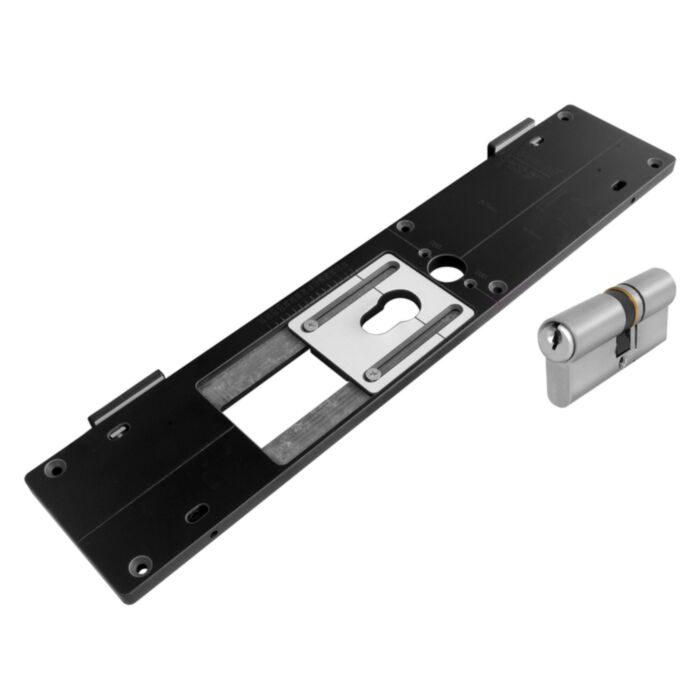

The Trend ECL/JIG Euro Cylinder Lock Barrel Jig is a quick and easy routing jig to cut hole for Euro Cylinder Lock barrels.
Routs out recess to suit Euro lock cylinder barrel size 33mm x 17mm/10mm.
Sliding plate allows handle pitch to lock body adjustment from 45mm to 115mm.
44mm and 57mm backset.
Jig is designed to give a 1mm clearance around the barrel.
Allows 16mm diameter hole for handle spindle to be routed.
Holes for use with 2.75mm diameter Trend Snappy drill bit guide for marking handle lock plate at 40mm centres.
Made from 12mm thick High Pressure Laminate for longer life.
Long rotating edge stops for use with 44mm doors with leading edge.
Reversible design.
Includes spacer pack to allow for slightly deeper backset
Accessory sliding plates available for small oval and large oval cylinder locks.
Requires plunge router, 12mm diameter cutter and 20mm diameter guide bush.
Cylinder not included.
Barrel size 33 mm x 17/10 mm
Finished hole size 35mm x 19/12 mm
Backset 44 mm & 57 mm
Handle spindle hole 16 mm
Size 490 mm x 101 mm
This product includes:
1 x Template with sliding aperture
2 x Edge guides
1 x Spacer pack
