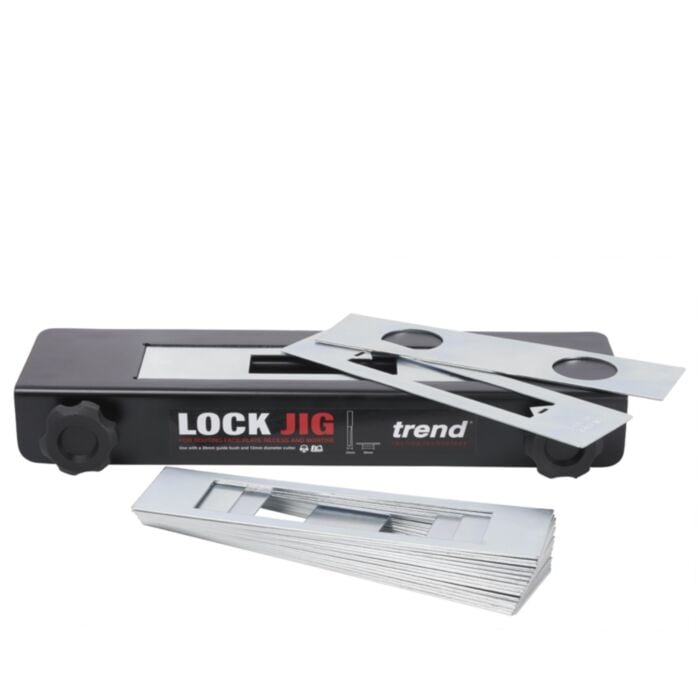

LOCK/JIG Trend Lock Jig - Contractor jig with interchangeable templates for use with a plunge router to cut the mortise & face-plate recess for popular door locks.
For most common sash mortises & dead locks, with up to 3 inch deep mortises & a 7/8 inch or 1 inch face-plate.
Deeper mortises can be achieved with a suitable size of auger bit.
Fast, clean & accurate results on doors 34mm to 58mm thick, even in hardwood.
Steel plates & body.
An auger bit and drill is required to complete deep mortises.
The jig requires a 1/2- inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise.
Door thickness min. 34 mm
Door thickness max. 58 mm
Template outer size 234.3 x 59.8 x1.5mm
Includes:
1 x Guide Bush Collar
12 x Face Plate Templates
5 x Mortise Templates
6 x Spacer Fingers
